Description

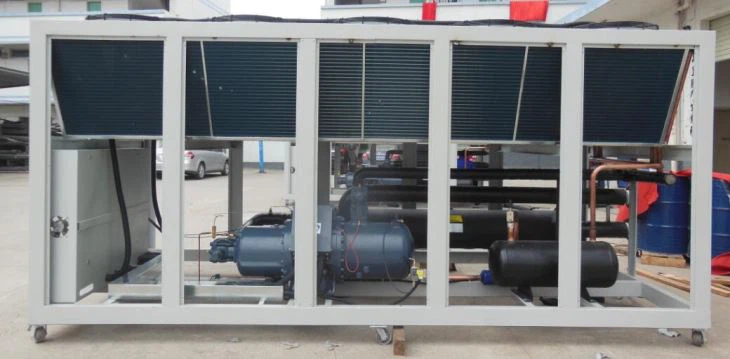

250 Kw 100 Hp Industrial Air Cooled Screw Water Chiller uses high-quality energy-saving compressors to match the quality of condensers and evaporators, featuring high efficiency, stable performance, low noise and long service life. It can be installed on roofs, roofs and other open spaces, does not require special space and is very space efficient.
Parameter
Item | Specifications | |
Cooling Capacity | Model | AYD-200AS |
kw/h | 257 | |
Power Input | kw | 82 |
Outlet Temp | degree | 7 |
Power Supply | 400V-3N-50HZ | |
Refrigerant | R407C | |
Dimension(L*W*H) | mm | 5080*2000*2060 |
Compressor | Type | semi-hermetic screw |
Power(kw) | 70.3 | |
Condenser | Type | Finned |
Fan Power(kw) | 10.56 | |
Air Volume(m3/h) | 129600 | |
Evaporator | Type | Shell and Tubes |
Pipe Size(") | 3 | |
Flow(m3/h) | 44.2 | |
Protector Device | 1.Phase protector | |
Features
250 Kw 100 Hp Industrial Air Cooled Screw Water Chiller uses an industrial PLC central control unit. The energy transfer system compressor can operate in a timely and efficient manner, reducing operating costs.
It provides English user interface and menu prompts, which can set the unit operating environment, which is very user-friendly and convenient for all employees.
It features a unique built-in hydraulic system and no pump to ensure optimum lubrication of the compressor.
The oil separator adopts double filtration, which has good oil filtering effect and can exert the maximum capacity of the heat exchanger.
It is a CNC machining center made with the latest CAD / CAM design and processing technology. It is compact, small and durable.
The U-shaped steel pipe can be cleaned on the whole scale, easy to maintain and prevent refrigerant leakage.
