Description

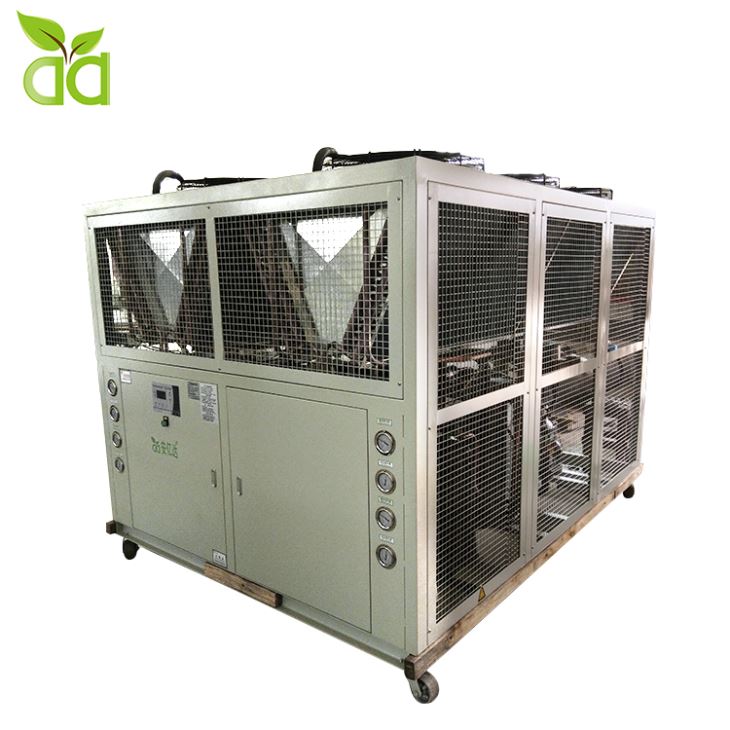

Glycol Low Temperature Beverage Chiller is a new generation of cryogenic refrigeration equipment designed for pharmaceutical, chemical, beverage filling, food processing, photovoltaic and other special industries. Its temperature range can be automatically adjusted between minus 40 degrees and minus 70 degrees. It selects imported port compressors according to temperature requirements, with reasonable design, stable performance, high quality and low price.
Parameter
Item | Specification / Supplier | ||
Cooling capacity | Model | AYD-40AL | |
kw/h | 47.9 | ||
Power input | kw | 45 | |
Power Supply | 380V-3N-50HZ | ||
Temp Outlet (℃) | -20 | ||
refrigerant control | Expansion valve | ||
Refrigeration circle | one | ||
refrigerant | R404A | ||
Dimension（mm）L*W*H | 4000*2000*2200 | ||
Compressor | Style | Semi-hermetic screw | |
Model | RC2-140B | ||
Quantity（set） | 1 | ||
Compressor Power(kw/pcs) | 36.7 | ||
Condenser | Style | Fin type | |
Quantity（set） | 4 | ||
Power(kw) | 3.52 | ||
Air Volume（m3/h） | 43200 | ||
Evaporator | Style | Shell and Tube / 1set | |
Cold water flow（m3/h） | 20 | ||
Pipe size（DN） | 65 | ||
Tank Volume(L) | 600 | ||
Pump Power(kw/h) | 3( 25m3/h,20m head) | ||
Protector Device | 1.Phase protector 2.Fan overload protector 3.High/low voltage protector 4.overheat protector 5.Anti-freeze protector | ||
Unit Weight（kg） | 1420 | ||
Operating Weight（kg） | 1800 | ||
Main Parts | |||
Compressor | Hanbell | ||
Electronic | Schneider | ||
Electrical control | Punp | ||
Features
Glycol Low Temperature Beverage Chiller uses imported compressors for low temperature performance and is reliable and durable.
It is equipped with a high-precision microcomputer controller that operates automatically and does not require anyone to be on duty.
The structure is compact, the design is scientific and beautiful, the full paint rust-proof design is corrosion-resistant, and has a variety of protection functions.
According to the different requirements of customers, the low temperature chiller can reach -40 degrees, and the lowest temperature chiller can reach -70 degrees. It uses low temperature linkage throttling technology, and the low temperature performance is beyond your imagination.
