Description

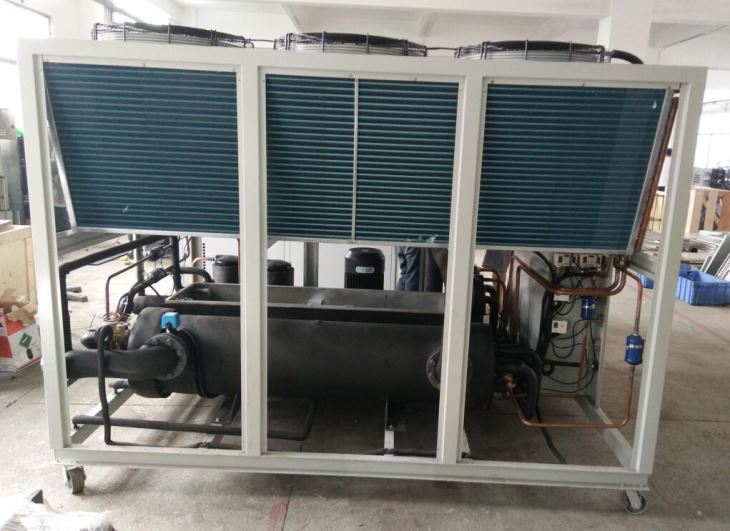

50HP 35Ton Integrated Copeland Scroll Compressor Water Chiller China Air Cooled For Soap Factory is very practical with its advanced design, rigorously selected materials and precision machining. Its wide applicability is designed for a wide range of refrigeration and refrigeration applications and is suitable for different operating conditions.
Parameter
Item | Specifications | |
Cooling Capacity | Model | AYD-50A |
ton/h | 35 | |
Power Input | kw | 44 |
Outlet Temp | degree | 7 |
Power Supply | 380V-3N-50HZ | |
Refrigerant | R407C | |
Dimension(L*W*H) | mm | 2580*2000*2060 |
Compressor | Type | hermetic scroll |
Power(kw) | 37.6 | |
Condenser | Type | Finned |
Fan Power(kw) | 5.28 | |
Air Volume(m3/h) | 52800 | |
Evaporator | Type | Shell and Tubes |
Pipe Size(") | 3 | |
Flow(m3/h) | 23.3 | |
Protector Device | 1.Phase protector | |
Features
50HP 35Ton Integrated Copeland Scroll Compressor Water Chiller China Air Cooled For Soap Factory is fully reliable. Comprehensive and rigorous quality management enables reliable operation without refrigerant leakage and oil leakage.
The water-cooled condenser adopts the domestic advanced internal heat-dissipating tube with internal thread ribs, which is 10~15% higher than the similar products, and the relative volume is small.
The whole condenser is calculated by computer, which is beautiful in appearance and reasonable in structure.
Drying filters, pressure gauges and other accessories are all well-known brands in China, ensuring the high efficiency and high reliability of the whole machine.
