Description

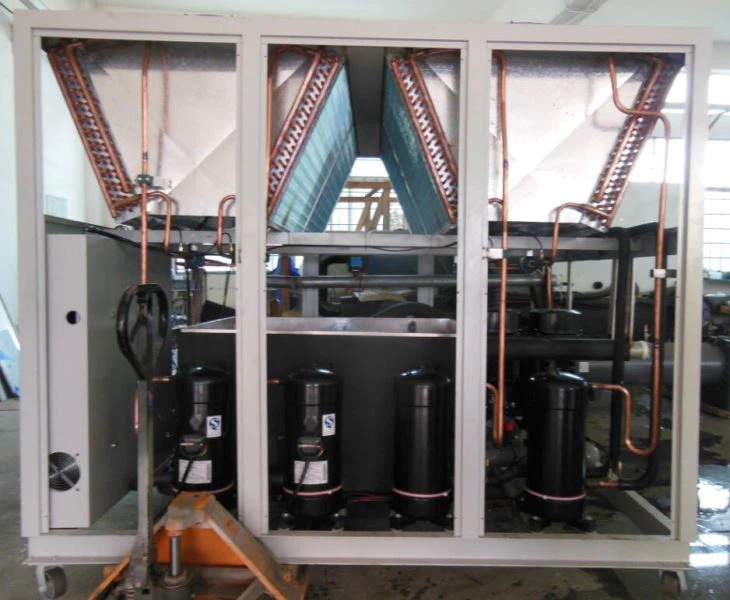

100 Kw Industrial Air Cooled Water Chiller Used In Plastic is also known as an air-cooled industrial chiller. It is a kind of equipment that is used for cooling equipment to cool down the equipment. It is widely used in medical, biological, chemical, laser, metallurgy, equipment manufacturing, electroplating, plastic processing and other industries. Since the source of heat exchange is air and is equipped with a dedicated fan, it is called "air-cooled".
Parameter
Item | Specification / Supplier | ||
Cooling capacity | Model | AYD-36A | |
kw/h | 100 | ||
Power input | kw | 32 | |
Power Supply | 415V-3N-50HZ | ||
Temp Outlet (℃) | 5-35 | ||
refrigerant control | Expansion valve | ||
Refrigeration circle | three | ||
refrigerant | R407C | ||
Dimension（mm）L*W*H | 2100*1800*2000 | ||
Compressor | Style | Scroll | |
Quantity（set） | 3 | ||
Compressor Power(kw) | 27 | ||
Condenser | Style | Fin type | |
Quantity（set） | 4 | ||
Power(kw) | 3.4 | ||
Air Volume（m3/h） | 38000 | ||
Evaporator | Style | Shell and Tube / 1set | |
Cold water flow（m3/h） | 17 | ||
Pipe size（DN） | 80 | ||
Protector Device | 1.Phase protector 2.Fan overload protector 3.High/low voltage protector 4.overheat protector 5.Anti-freeze protector | ||
Unit Weight（kg） | 1700 | ||
Operating Weight（kg） | 1720 | ||
Main Parts | |||
Compressor | Panasonic/ Copeland | ||
Electronic | LS / Carlo | ||
Electromagnetically valve | Emerson | ||
Expansion Valve | Emerson | ||
Electrical control | Punp | ||
Features
100 Kw Industrial Air Cooled Water Chiller Used In Plastic uses a highly efficient air-side heat exchanger with a unique M-shaped design. The inner groove and patented sawtooth design and hydrophilic aluminum fins ensure effective air-side exchangers and ambient air. Heat exchange.
It is equipped with dry and tubular heat exchangers with internal channel copper tubes to optimize cooling and heating efficiency. Self-cleaning, high strength, anti-shake design and thermal insulation cover material ensure that the shell and tube heat exchanger is not dyed.
It is equipped with comprehensive protection devices such as water shortage protection, high and low voltage protection, antifreeze protection, overload protection, overheat protection and oil level protection to ensure high reliability and stability of machine operation.
