Ti Tube Evaporator Pool Water Chiller
1.Simple Discription
This chiller can be used for both freshwater and seawater. It is suitable for hotels, guesthouses, restaurants, seafood markets, aquariums, and aquaculture farms to adjust and control the water temperature of fish ponds.
We made of high-quality industrial pure titanium to make heat exchanger, which has strong corrosion resistance and can be adapted to fresh seawater and acid-base liquids.

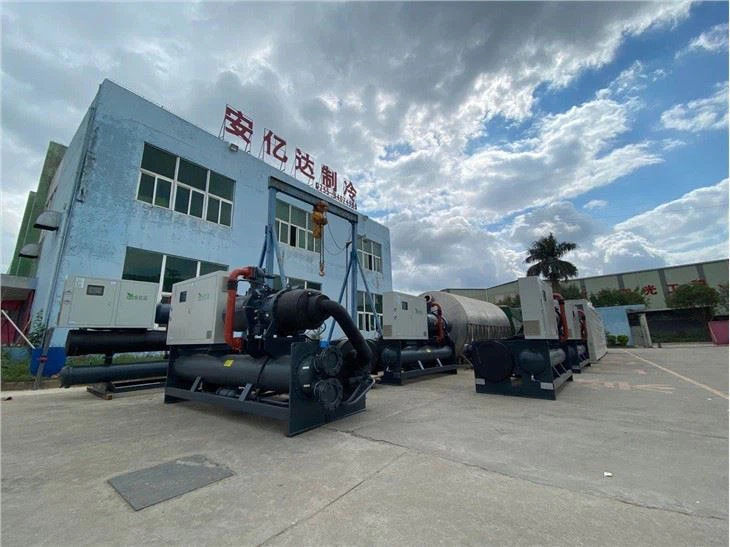

Here we introduced this screw water chiller is used for a aquaculture workshop.We adopt anti-corrosive Ti material evaporator to make the longer life.
2.Specs table
| Item | Specification / Supplier | ||
| Cooling capacity | Model | AYD-120W | |
| kw/h | 400 | ||
| Power input | kw | 86.7 | |
| Power supply | 380V-3N-50HZ | ||
| Temp Outlet (ºC) | 10 | ||
| refrigerant control | Expansion valve | ||
| Refrigeration circle | one | ||
| refrigerant | R407C | ||
| Dimension(mm)L×W×H | 1800*900*1800 | ||
| Compressor | Style | Semi-hermetic screw | |
| Quantity(set) | 1 | ||
| Compressor Power(kw) | 86.7 | ||
| Condenser | Style | Shell and Tube / 1set | |
| Pipe size(DN) | 100 | ||
| Cooling tower flow(m3/h) | 72.6 | ||
| Evaporator | Style | Shell and Tube / 1set | |
| Cold water flow(m3/h) | 51.6 | ||
| Pipe size(DN) | 100 | ||
| Protector Device | 1,Phase protector 2,Fan overload protector 3,High/low voltage protector 4,overheat protector 5,Anti-freeze protector | ||
| Unit Weight(kg) | 2050 | ||
| Operating Weight(kg) | 2250 | ||
| Main Parts | |||
| Compressor | Hanbell/Fusheng | ||
| Electronic | LS / Carlo | ||
| Electromagnetically valve | Emerson | ||
| Expansion Valve | Emerson | ||
| Electrical control | Punp | ||
3.Product Details:
