Water chiller, it is a machine that achieves the cooling effect through vapor compression or absorption cycle. These liquids can flow through the heat exchanger to cool the air or equipment.
Application:
1. Plastic 2113 industry: accurately control the mold temperature of various plastic processing, shorten the cycle of beer molding, and ensure the stability of product quality.
2. Electronic industry: Stabilize the internal 5261 sub-structure of electronic components on the production line, improve the qualification rate of electronic components, and apply it in the ultrasonic cleaning industry to effectively prevent the volatilization and volatilization of expensive cleaning agents from 4102 damage to people.
3. Electroplating industry: control the electroplating temperature, increase the density and smoothness of the plated parts, shorten the electroplating cycle, increase production efficiency, and improve product quality.
4. Machinery industry: Control the oil temperature of the oil pressure system, stabilize the oil temperature and oil pressure, extend the oil quality use time, improve the efficiency of mechanical lubrication, and reduce wear.
5. Construction industry: supply chilled water for concrete, make the molecular structure of 1653 concrete suitable for construction purposes, and effectively enhance the hardness and toughness of concrete.
6. Vacuum coating: control the temperature of the vacuum coating machine to ensure the high quality of the coated parts.
7. Food industry: used for high-speed cooling after food processing to adapt to packaging requirements. In addition, there are control of the temperature of fermented food.
8. Pharmaceutical industry: In the pharmaceutical industry, it is mainly used to control the temperature control of fermented drugs. Pharmaceutical companies should make full use of chiller equipment, continue to strengthen technological innovation based on their advantages, and enhance the cost-effectiveness of chillers, so as to better serve the pharmaceutical sector.
Here we simply introduce the 30kw air cooled water chiller, it adopt 2pcs of Sanyo compressor, 5-20Degrees adjustable, with tank and pump inside,R407C refrigerant.Parameters belows:
Item | Specification / Supplier | ||
Cooling capacity | Model | AYD-12A | |
kw/h | 30 | ||
Power input | kw | 12 | |
Temp Outlet (℃) | 7 | ||
Power Supply | 380V-3N-50HZ | ||
refrigerant control | Expansion valve | ||
Refrigeration circle | two | ||
refrigerant | R407C | ||
Dimension（mm）L×W×H | 2000*900*1780 | ||
Compressor | Style | Scroll | |
Compressor Power(kw) | 10.38 | ||
Condenser
| Style | Fin | |
Air Volume（m3/h） | 12600 | ||
Evaporator | Style | Shell and Tubes / 1set | |
water flow（m3/h） | 10 | ||
Pump Power(kw) | 1.5(11.4me/h,2bar) | ||
Tank Volume(L) | 80 | ||
Pipe size（G） | 1-1/2” | ||
Protector Device | 1、Phase protector 2、Fan overload protector 3、High/low voltage protector 4、overheat protector 5、Anti-freeze protector | ||
Unit Weight（kg） | 520 | ||
Main Parts | |||
Compressor | Sanyo | ||
Condenser | Anyda | ||
Evaporator | Jindian | ||
Electronic | LS / Carlo / Chnt | ||
Expansion Valve | Emerson | ||
Electrical control | Xinrong | ||
Inside Pictures:

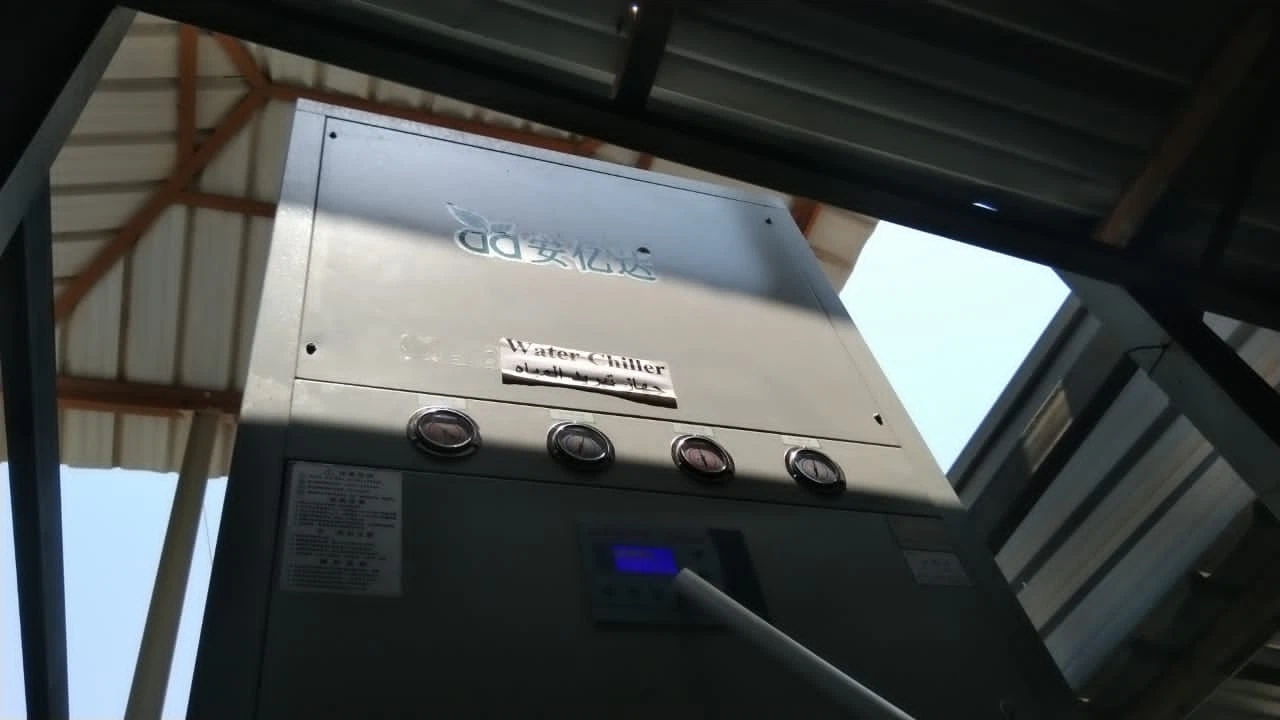

Project Reference:
