40HP Air Cooled Piston Compressor Chiller Application:
1. Plastic industry: accurately control the mold temperature of various plastic processing, shorten the cycle of beer molding, and ensure the stability of product quality.
2. Electronic industry: Stabilize the internal molecular structure of electronic components on the production line, improve the qualification rate of electronic components, and be used in the ultrasonic cleaning industry to effectively prevent the volatilization and damage of expensive cleaning agents.
3. Electroplating industry: control the electroplating temperature, increase the density and smoothness of the plated parts, shorten the electroplating cycle, increase production efficiency, and improve product quality.
4. Machinery industry: control the oil temperature of the oil pressure system, stabilize the oil temperature and oil pressure, extend the oil quality use time, improve the efficiency of mechanical lubrication, and reduce wear.
5. Construction industry: supply chilled water for concrete, make the molecular structure of concrete suitable for construction purposes, and effectively enhance the hardness and toughness of concrete.
6. Vacuum coating: control the temperature of the vacuum coating machine to ensure the high quality of the plated parts.
7. Food industry: used for high-speed cooling after food processing to adapt to packaging requirements. In addition, there is also the control of the temperature of fermented foods and so on.
8. Pharmaceutical industry: In the pharmaceutical industry, it is mainly used to control the temperature control of fermented drugs. Pharmaceutical companies should make full use of chiller equipment, continue to strengthen technological innovation based on their advantages, and enhance the cost-effectiveness of chillers, so as to better serve the pharmaceutical sector.
Features:
1. Adopt 2pcs of Bitzer Piston compressors, low noise and power saving, More durable;2. Adopt fin and copper tube condenser, stable performance;
3. Shell and tubes evaporator, which is more steady and less maintance than copper coil inside tank;
4. Microcomputer digital temperature controller, integrated operation, simple and practical, high control precision;
5. Chiller Unit equipped with reverse phase lack protection, motor overload protection, high and low voltage protection, temperature protection and other security protection device, made the system more stable and secure. Small size, light weight, and compact structure.

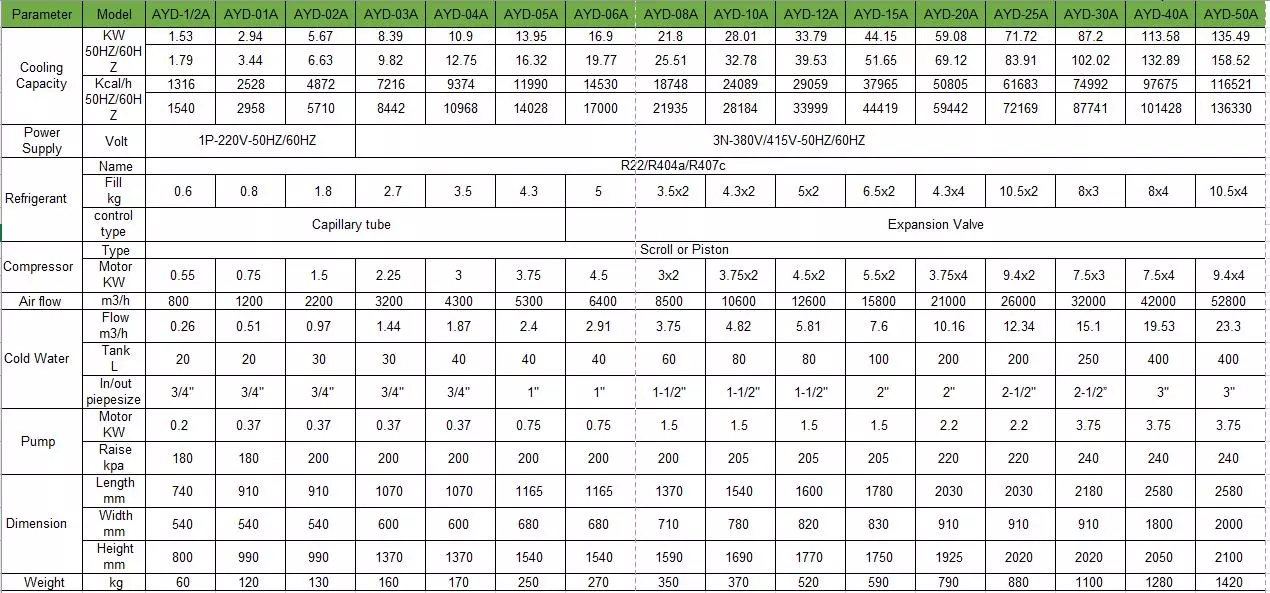

Specifications:
Item | Specification / Supplier | |
Cooling capacity | Model | AYD-40A |
kw | 77.4 | |
Power input | kw | 25.78 |
Power Supply | 415V-3N-50HZ | |
Temp Outlet | ℃ | 7 |
refrigerant control | Expansion valve | |
Refrigeration circle | two | |
refrigerant | R407C | |
Dimension | （mm）L*W*H | 2000*2000*2200 |
Compressor | Style | Piston |
Quantity（set） | 2 | |
Compressor Power(kw) | 25.78 | |
Condenser | Style | Fin type with copper coil |
Quantity（set） | 4 | |
Power(kw) | 3.4 | |
Air Volume（m3/h） | 42000 | |
Evaporator | Style | Shell and Tubes |
Cold water flow（m3/h） | 14 | |
Pipe size（DN） | 50 | |
Protector Device | 1.Phase protector 2.Fan overload protector 3.High/low voltage protector 4.overheat protector 5.Anti-freeze protector | |
Unit Weight | kg | 1280 |
Main Parts | ||
Compressor | Bitzer | |
Condenser | Anyda | |
Evaporator | Jindian | |
Electronic | LS/ Chnt | |
Expansion Valve | Sanhua | |
Control System | Punp | |
Remarks: The cooling capacity is based on condensing temp 50C, inlet/outlet temp 12/7C.

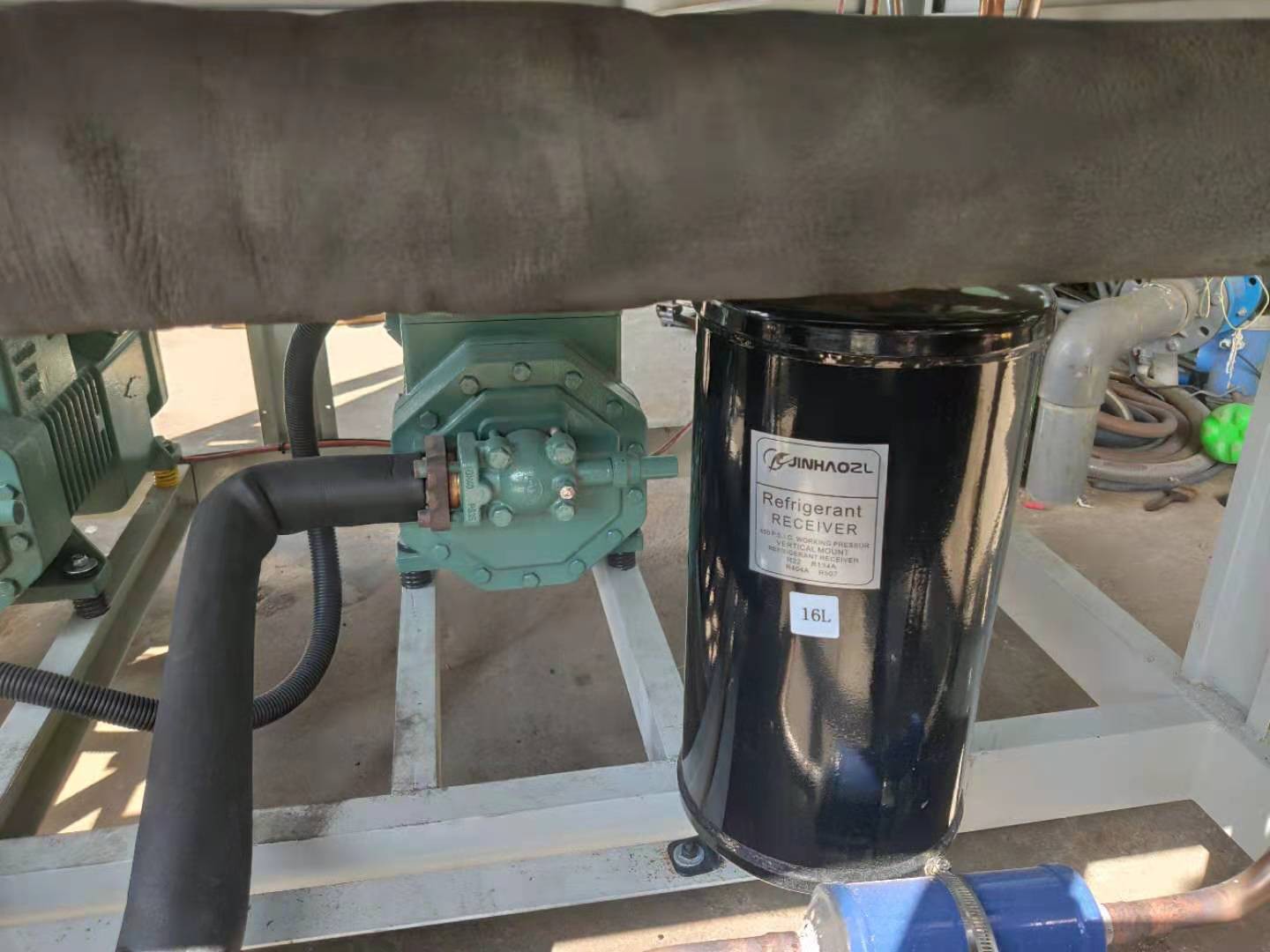

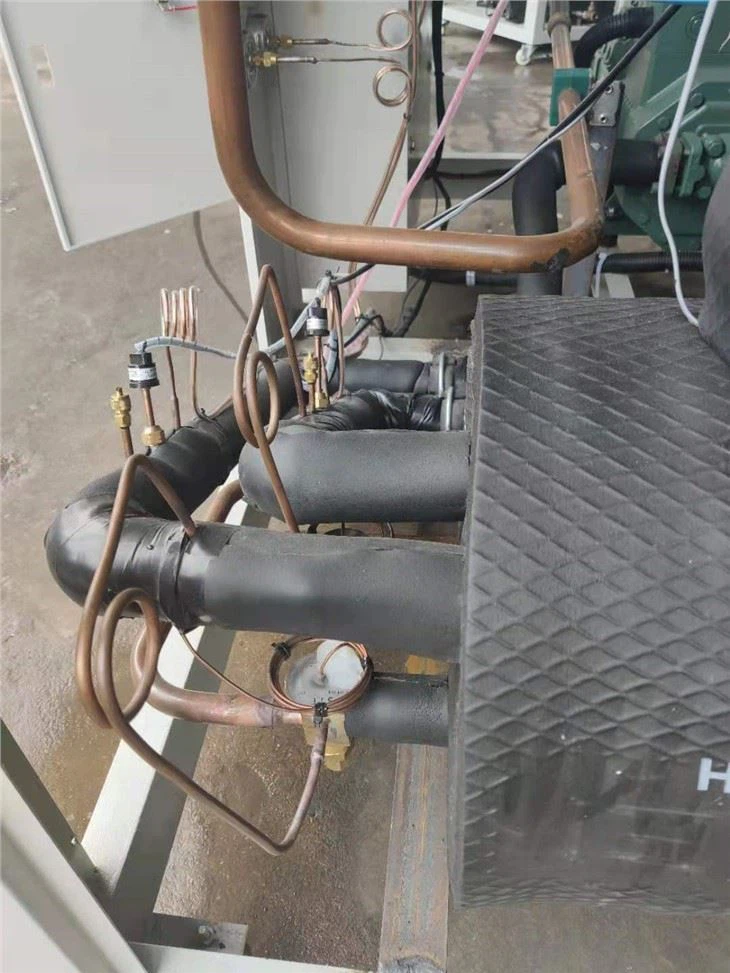

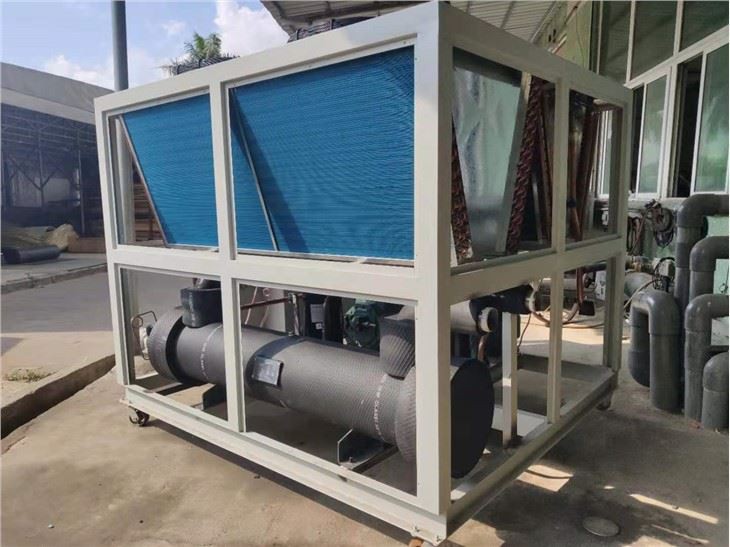

Detailed Image:

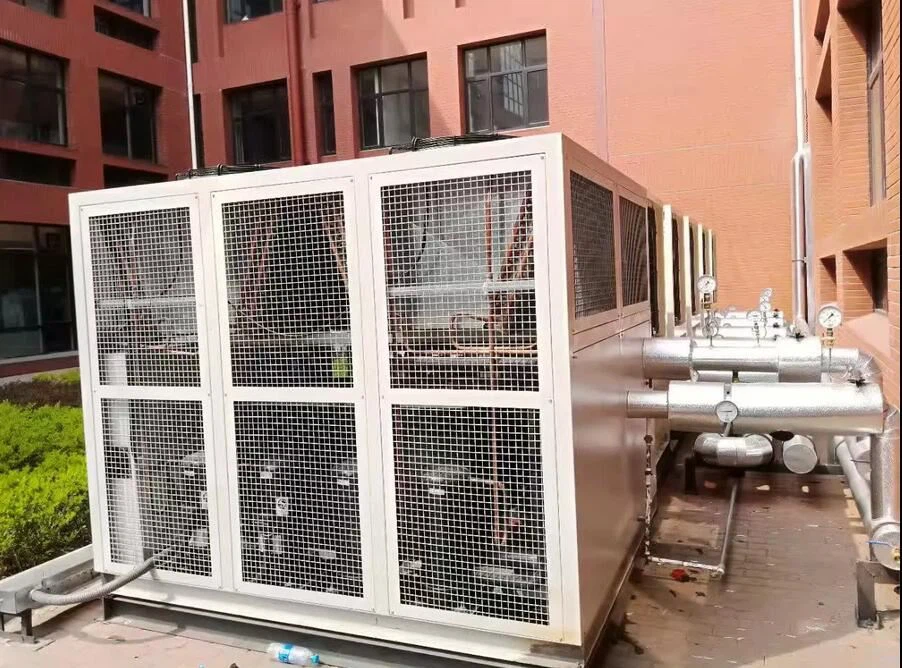

Similar Models Project Pictures:
