Description

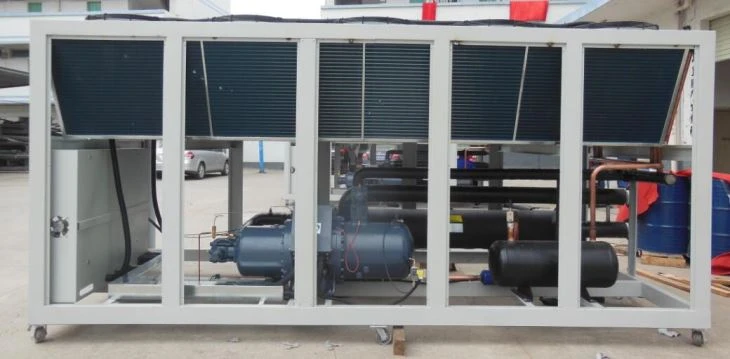

200 Ton 700 Kw Air Cooled Screw Compressor Chiller 7 C Outlet 60HZ is an energy-adjustable fuel injection compressor. Its three consecutive processes of inhalation, compression, and exhaust are achieved by periodic volume changes caused by the rotation of a pair of intermeshing male and female rotors in the body. Generally, the male rotor is the active rotor, and the female rotor is the driven rotor. Each factory unit is tested and inspected by standard laboratories to ensure reliable quality and stable operation, in line with relevant national standards.
Parameter
Item | Specification / Supplier | ||
Cooling capacity | Model | AYD-700A | |
ton/h | 200 | ||
Power input | kw | 262.8 | |
Current | A | 439 | |
Temp Outlet (℃) | 7 | ||
Power Supply | 380V-3N-60HZ | ||
refrigerant control | Expansion valve | ||
Refrigeration circle | one | ||
refrigerant | R407C | ||
Dimension（mm）L×W×H | 10000*2100*2200 | ||
Compressor | Style | Semi-hermetic screw type | |
Quantity（set） | 1 | ||
Compressor Power(kw) | 238.6 | ||
Start Way | 0-25%-50%-75%-100% | ||
Condenser
| Style | Fin | |
Air Volume（m3/h） | 264000 | ||
Fan Power(kw) | 24.2 | ||
Evaporator | Style | Shell and Tube / 1set | |
Cold water flow（m3/h） | 123.9 | ||
Pipe size（DN） | 150 | ||
Protector Device | 1.Phase protector 2.Fan overload protector 3.High/low voltage protector 4.overheat protector 5.Anti-freeze protector | ||
Unit Weight（kg） | 5800 | ||
Main Parts | |||
Compressor | Hanbell | ||
Electronic | LG / Carlo | ||
Electromagnetically valve | Emerson | ||
Expansion Valve | Emerson | ||
Electrical control Board | Punp | ||
Features
200 Ton 700 Kw Air Cooled Screw Compressor Chiller 7 C Outlet 60HZ uses imported twin-screw compressors. The twin-screw achieves a 5:6 gear ratio and advanced linear design, saving energy and efficiency.
It is controlled by high-efficiency valve energy to achieve grading or stepless control, so the balanced design makes the operation quiet and stable.
Its moving parts are strictly treated, and the special exhaust has oil balance block design, long maintenance period, and trouble-free operation for more than 40,000 hours.
The high-efficiency oil separator has an oil discharge of less than 1.5%, which effectively improves the heat exchange between the two devices, and is more energy-saving and durable.
