Cooling Tower Chilled Water System

Cooling tower chilled water system features:

1. The surface of the tower body is made of gel coat resin, which has the advantages of aging resistance, corrosion resistance and no fading.

2. The steel bracket in the tower adopts galvanized process, plus anti-corrosion paint, and the anti-corrosion ability is particularly strong.

3. The appearance is beautiful, the floor space is saved, and it can be combined and installed.

4. Special motors and fans for cooling towers are used. The fans have won the National Quality Management Award.

5. High-efficiency water-spraying filler is used, which is resistant to high temperature, low temperature, flame retardant, and has high strength after assembly.

6. The water collector adopts the dislocation 30×160 type, and the water collection efficiency is high.

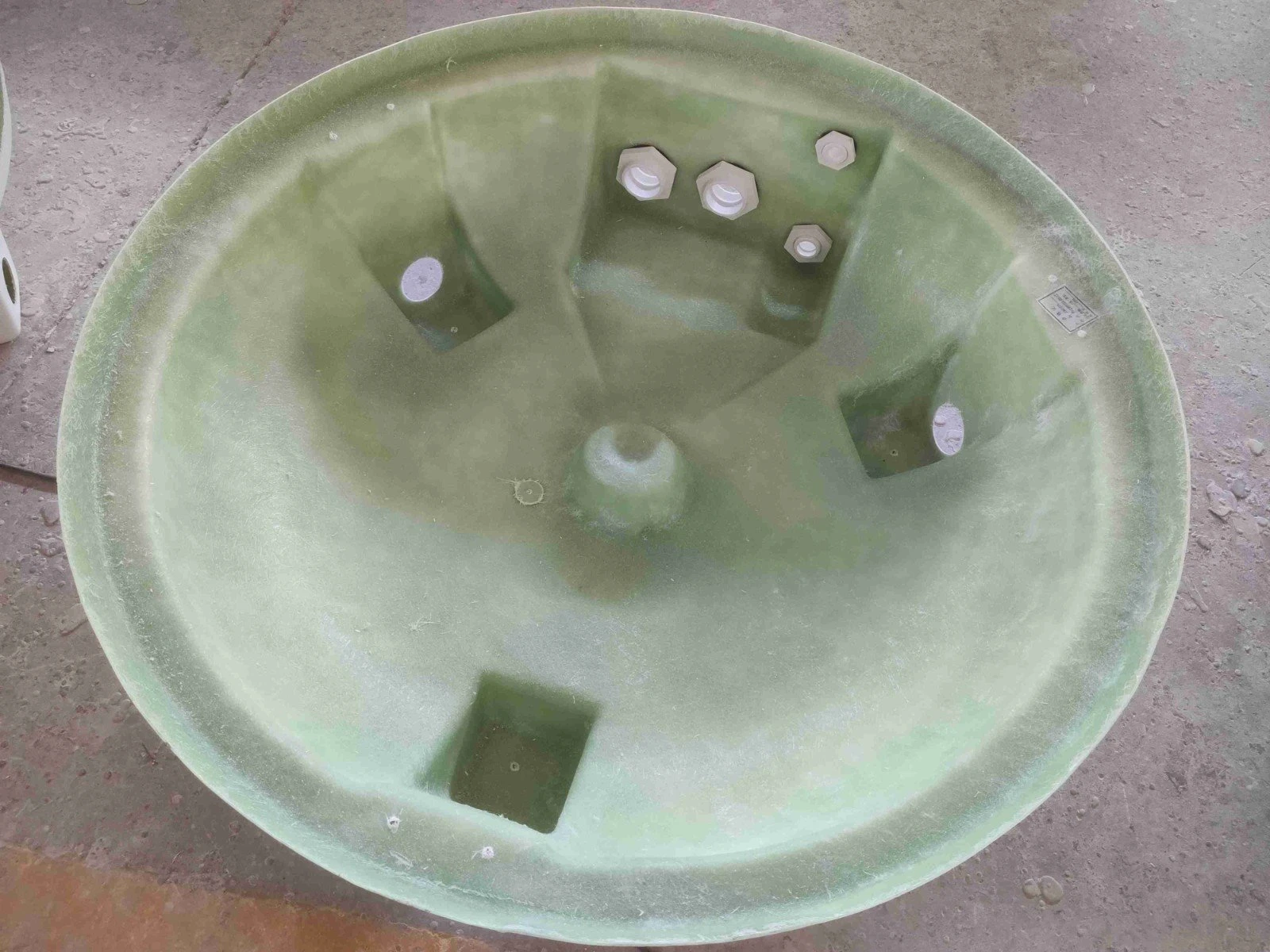

7. The chassis can be used as a sump, no need to set up another sump.

8. The tower body has good stability and strength, and can withstand earthquakes of magnitude 8 on the Richter scale and typhoons of magnitude 12.

9. Unique noise reduction technology, extremely low noise.

Here list our AYD-350T specs belows

Simple Introduce of our cooling tower chilled water system

1. cooling tower chilled water system advantages:

    Our company's cooling tower is made of 24-type high-quality heat-dissipating film, which can still operate freely despite the high temperature of 58.5 degrees into the water. The curved twill design of the film can effectively prolong the contact time between the high-temperature water and the cooling air in the tower; coupled with the axial flow arc angle design of the fan, the exchange of the cooling air can be smoother, thus greatly improving the cooling efficiency .

2. Good quality:

    The shell of the cooling tower is made of high-quality high-toughness glass, which is resistant to natural factors and chemical erosion, and remains as new for a long time. Moreover, all steels are treated with BS729 hot dip galvanizing process, which can reduce oxidation and make the product stronger and more durable.

     In addition, the water inlet and outlet connectors used in general cooling towers will explode due to aging in a short period of time, resulting in water leakage or flooding. Our company's cooling tower has been specially improved to address this shortcoming. The inlet and outlet water connectors are made of original mixed resin and aluminum alloy die-casting, which are particularly strong and durable, surpassing the same level.

3. Best Customer Service:

The customer only needs to provide the following information, and can choose the appropriate model for the customer, including: 1. Cooling circulating water quantum, 2. Inlet water temperature, 3. Outlet water temperature, 4. Outdoor wet bulb temperature, 5. Different voltages and frequencies specified by various countries , 6, cooling tower installation location.

How to place the cooling tower?

    Cooling towers should be installed in a clean environment with good air flow, and should be avoided as far as possible from heat sources, waste gas and flue gas generation points, chemical stacks and coal fleets to ensure their cooling effect. The distance between cooling towers or other buildings, in addition to the ventilation requirements of the towers and the mutual influence between the towers and the buildings, should also consider the safety distance of the buildings against fire and explosion; Due to the influence of the effect, the arrangement of cooling towers in multiple rows should be avoided as much as possible, and the cooling tower should be sandwiched in a narrow and long area in the middle of tall buildings as much as possible.

     Considering the ventilation conditions and cooling effect, the cooling tower should be arranged as high as possible, but the power consumption of the water pump should also be considered; if the cooling tower is installed on the roof, the fan maintenance control switch should be installed. Generally, the switches are located in the machine room, and the roof cannot be controlled. If the maintenance personnel make mistakes in the maintenance of the tower, starting the fan will cause casualties. The make-up water volume of the cooling tower is generally 1%-3% of the circulating water volume of the cooling tower. In order to prevent the corrosion of the cooling tower and the cooling water pipeline, there are certain requirements for the quality of the cooling water and the make-up water.

The correct cleaning method for cleaning the cooling tower can be carried out according to the following steps:

1. Clean the sediment, scale, silt, and long moss in the cooling tower, and then use the cleaning water gun to clean the fan, sprinkler, packing, tray, water outlet and water outlet filter of the water tower.

2. After the above components are cleaned, start the circulating water pump, put cleaning agent and bactericidal algaecide in the cooling tower, control the pH value of the water between 5.5 and 6.0, and remove the rust and algae in the equipment pipeline. .

3. After cleaning the cooling tower, close the upper drain valve, reopen the water supply valve, and fill the cooling tower with water. At the same time, open the communication valve of the cooling tower to adjust and balance the water level of the communication tower to avoid overflow.

The water temperature of the machine is different depending on the industry where the user is located. With the cooling tower, the heat in the water from the machine can be continuously taken away. If the cooling tower's heat dissipation effect is not good, then the machine's operation effect will definitely be greatly reduced.

    Some people think that it does not matter whether the water quality of the cooling tower is good or bad, as long as the tower body is often drained, it is not true, the cooling tower blowdown can only temporarily sort out the obstacles in the tower, and the cooling tower packing and spray system have not been obtained. Effective cleaning, once the cooling tower packing and spray system are blocked, it will directly affect the cooling tower cooling; so the quality of the cooling tower circulating water directly determines the cooling tower cooling effect and service life.

Therefore, the number of blowdowns of the cooling tower should be based on the quality of the circulating water medium, and the three diligence criteria of "frequent inspection, frequent maintenance, and frequent dosing" must be fulfilled to ensure the service life and cooling effect of the FRP cooling tower.
