Description

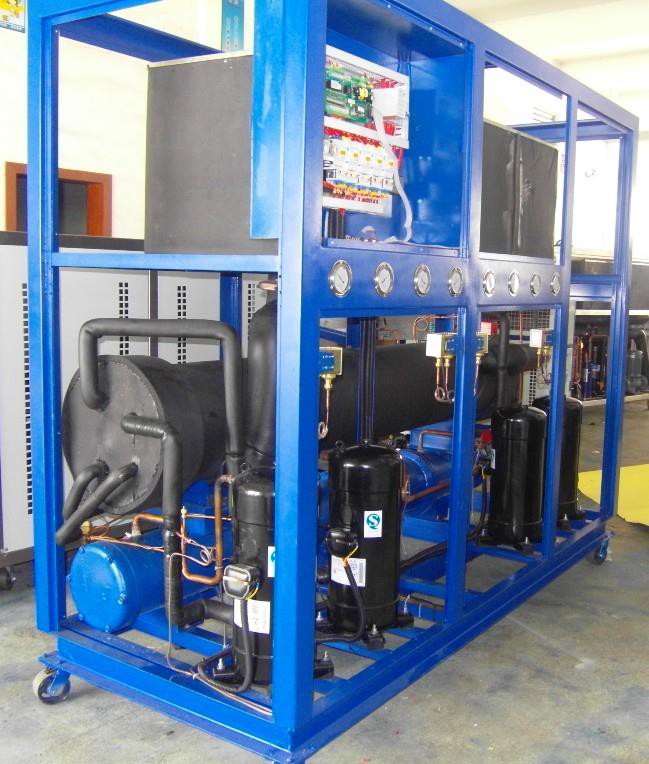

Modular 40ton 50HP Industrial Water Cooled Water Cooling Chiller is able to precisely control the mold temperature during plastic molding, thereby shortening the molding cycle and accelerating product morphing. It uses the principle of heat exchange to achieve rapid cooling to achieve stable temperature control and is virtually immune to ambient factors. Therefore they are an indispensable good device in modern industry.
Parameter
| Item | Specification / Supplier | ||
| Cooling capacity | Model | AYD-50W | |
| kw/h | 165 | ||
| Power input | kw | 43.23 | |
| Power supply | 380V-3N-50HZ | ||
| Temp Outlet (ºC) | 7 | ||
| refrigerant control | Expansion valve | ||
| Refrigeration circle | four | ||
| refrigerant | R22 | ||
| Dimension(mm)L×W×H | 2200*1500*1900 | ||
| Compressor | Style | Scroll | |
| Quantity(set) | 4 | ||
| Compressor Power(kw) | 37.4 | ||
| Condenser | Style | Shell and Tube / 1set | |
| Pipe size(DN) | 80 | ||
| Cooling tower flow(m3/h) | 33.5 | ||
| Evaporator | Style | Shell and Tube / 1set | |
| Cold water flow(m3/h) | 27.5 | ||
| Pipe size(DN) | 80 | ||
| Water Tank(L) | 500 | ||
| Pump Power(kw/h) | 3.75 | ||
| Unit Weight(kg) | 1500 | ||
| Operating Weight(kg) | 1800 | ||
Features
Modular 40ton 50HP Industrial Water Cooled Water Cooling Chiller has a cooling temperature range of 5-35 degrees.
It is equipped with a high-capacity shell-and-tube evaporator with very good heat exchange performance, especially at high ambient temperatures.
Its shell and tube condensers provide excellent heat transfer and rapid cooling.
It has phase sequence protection of the control circuit and a refrigeration circuit controlled by high and low voltage switches.
It is suitable for machine cooling in industries such as plastics, electroplating, food, electronics, bleaching and dyeing, and ultrasonics.
