Air chiller water cooling system is a device used to lower the temperature of water. Most chillers use refrigerant in a closed loop system to facilitate heat exchange from water where the refrigerant is then pumped to a location where the waste heat is transferred to the atmosphere.
How air chiller water cooling system work?
The working principle of the air chiller water cooling system is vapor compression refrigeration, that is, the principle of absorbing heat when the liquid refrigerant vaporizes and releasing heat when the steam condenses is used for refrigeration. In refrigeration technology, evaporation refers to the process in which liquid refrigerant becomes gaseous when it reaches boiling point. The transformation of liquid into gaseous state can only be realized by absorbing heat energy from the outside, so it is an endothermic process.

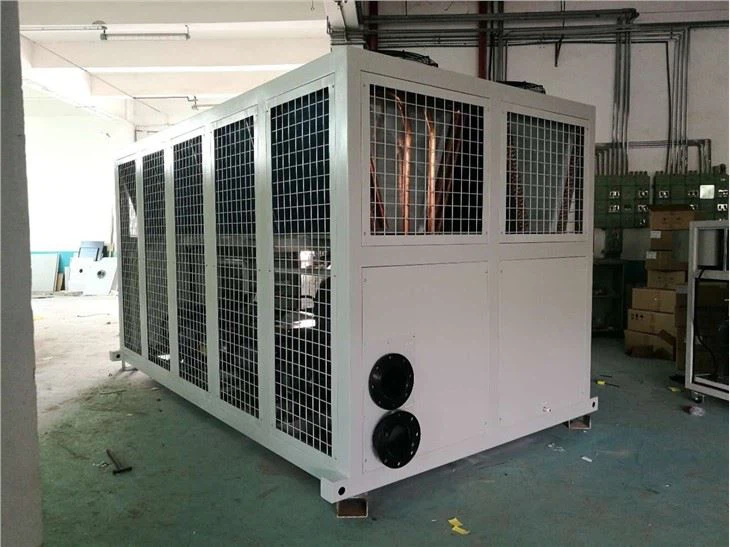

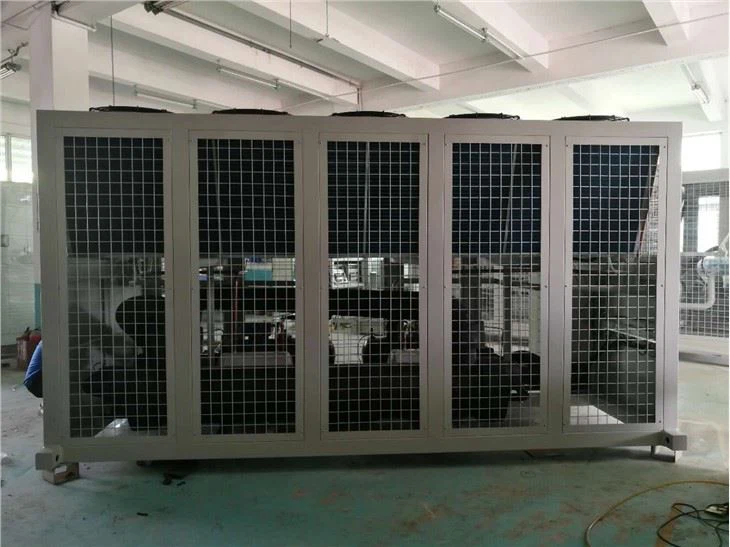

Now Let's see the 80ton air chiller water cooling system specs:
|
Item |
Specification / Supplier |
||
|
Cooling capacity |
Model |
AYD-115AS |
|
|
kw |
281.9 |
||
|
ton |
80.15 |
||
|
Power input |
kw |
105.2 |
|
|
Power Supply |
380V-3N-50HZ |
||
|
Temp Outlet (℃) |
7 |
||
|
refrigerant control |
Expansion valve |
||
|
Refrigeration circle |
one |
||
|
refrigerant |
R407C |
||
|
Dimension（mm）L*W*H |
5000*2000*2200 |
||
|
Compressor |
Style |
Screw |
|
|
Model |
RC2-370B |
||
|
Quantity（set） |
1 |
||
|
Compressor Power(kw) |
94.2 |
||
|
Condenser |
Style |
Fin type with copper coil |
|
|
Quantity（set） |
10 |
||
|
Power(kw) |
11 |
||
|
Air Volume（m3/h） |
130000 |
||
|
Evaporator |
Style |
Shell and Tubes |
|
|
Cold water flow（m3/h） |
53 |
||
|
Pipe size（DN） |
100 |
||
|
Protector Device |
1.Phase protector 2.Fan overload protector 3.High/low voltage protector 4.overheat protector 5.Anti-freeze protector |
||
|
Unit Weight（kg） |
1420 |
||
|
Main Parts |
|||
|
Compressor |
Hanbell |
||
|
Electronic |
LS/ Chnt |
||
|
Expansion Valve |
Emerson |
||
|
Control System |
Siemens |
||
Remarks:The cooling capacity based on ambient temp 35degs, inlet/outlet temp 12/7Degs.

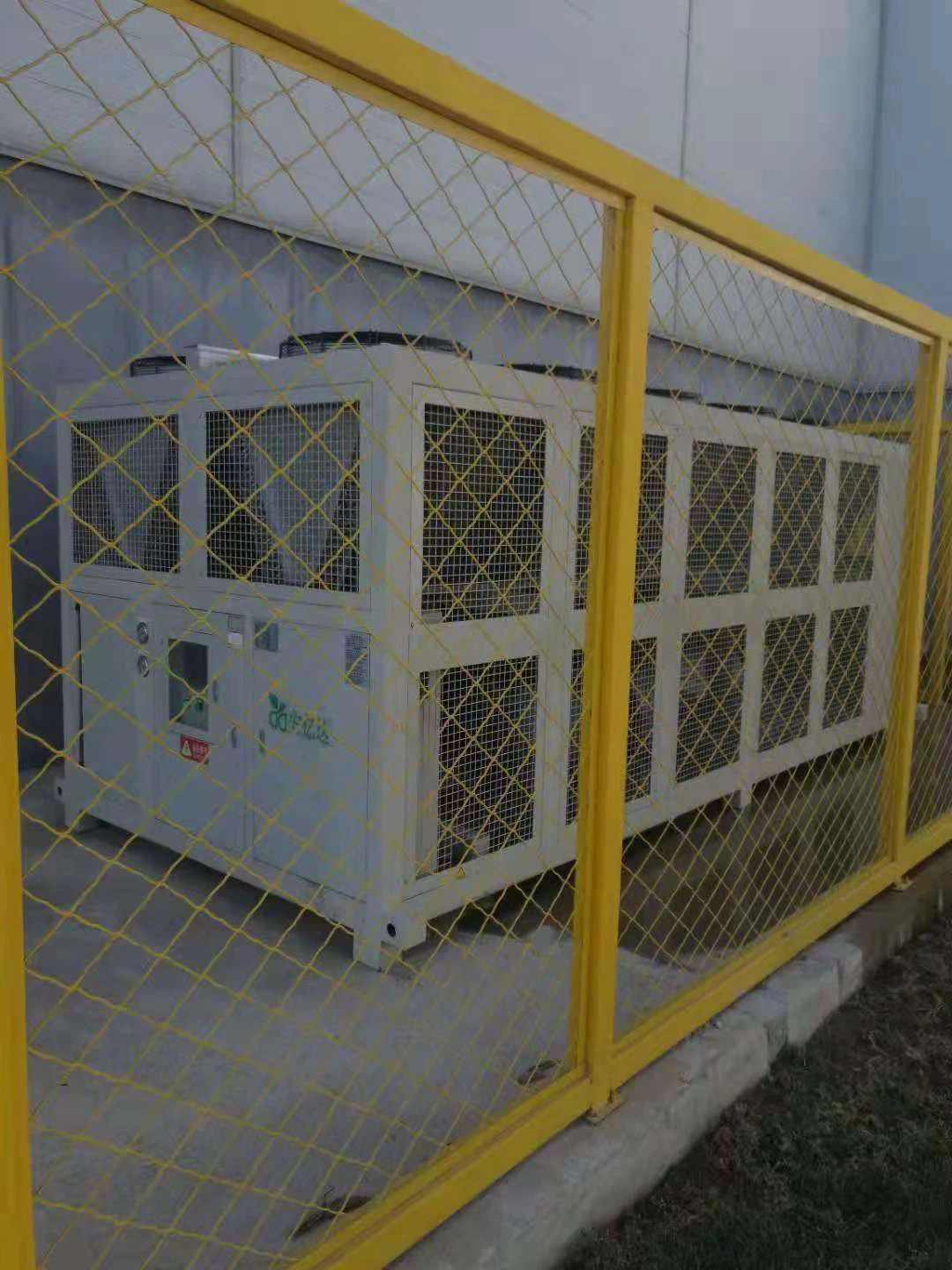

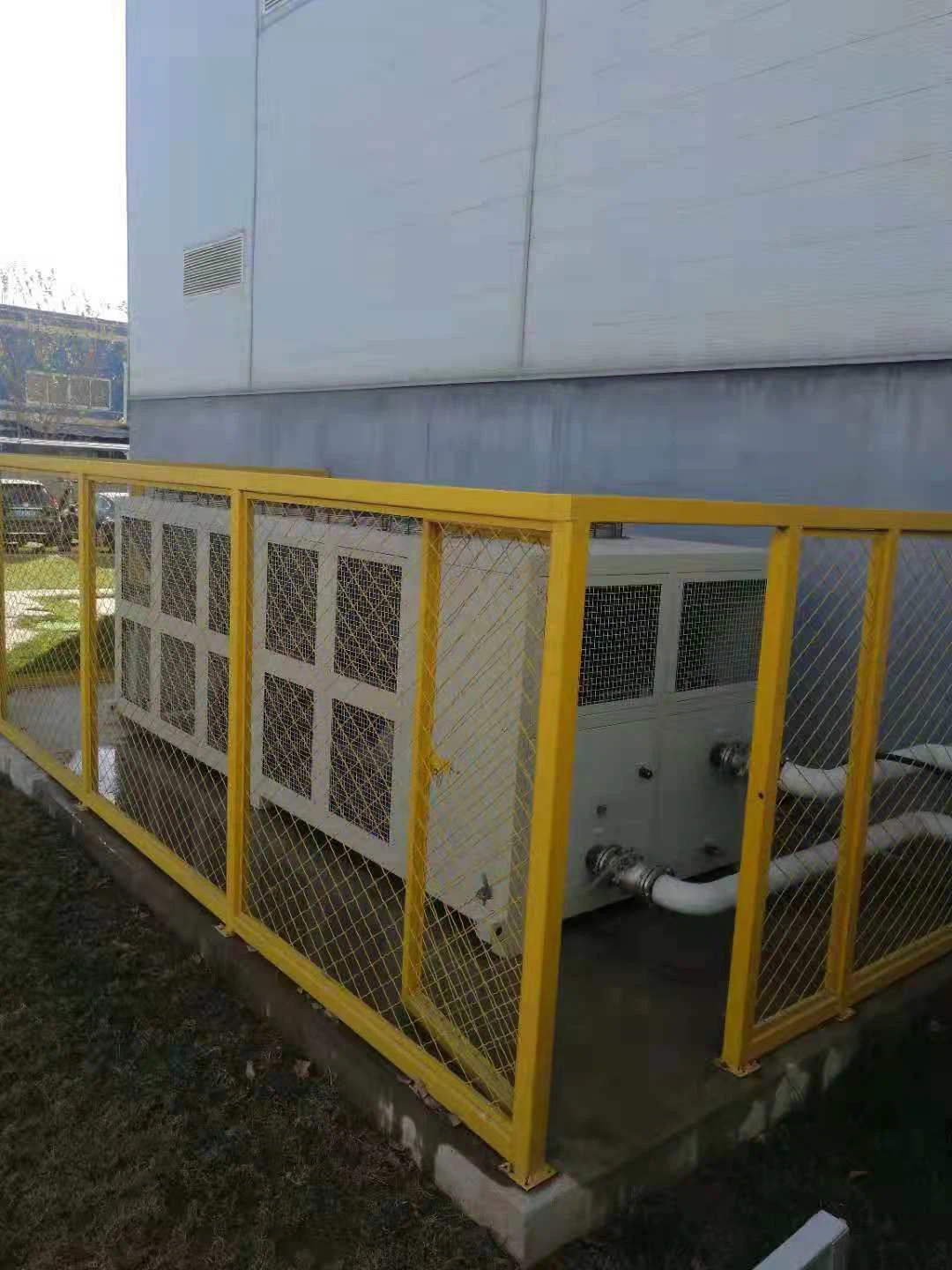

Similar Project:
FAQ:
a. How to confirm the chiller size?
Cooling capacity and outlet temperature. If you are not sure of the cooling capacity, pls inform us the water flow, temperature inlet, temperature outlet.
Cooling Capacity(kw)= Flow Rate(m3/h)*Temp Change(T1-t2)/0.86
Heat Load= C(specific heat)* M(quality output per hour )*Temp Change(T1-T2)
b. Application of the chiller
1. Industrial chiller:
It is applicable to the freezing and cooling of plastic machinery, injection molding, electroplating, electronic plants and other industries. It can quickly cool the normal temperature water to the required temperature.
2. Air conditioning and refrigeration equipment:
It is used for central air-conditioning system in hotels, hospitals, schools and factories.
3. Food processing industry:
It can be used for direct cooling of beverage and beer production lines; It can also be used with the water cooling system of large ink printing presses; It can also be used for cooling and cleaning water of chemical reaction kettle.
4. Precision instruments for laboratory:
Constant temperature and humidity treatment such as microscope and telescope
5. Medical applications:
Low temperature pump or heat exchanger is equipped for medical infusion
6. Agriculture and horticulture
c.The main maintenance contents of the industrial water chiller every quarter:
1. Clean the condenser of the unit;
2. Condenser pre film;
2. Clean the evaporator of the unit;
3. Evaporator pre film;
4. Replace the unit filter;
5. Replace the compressor oil of the unit;
6. Add refrigerant.

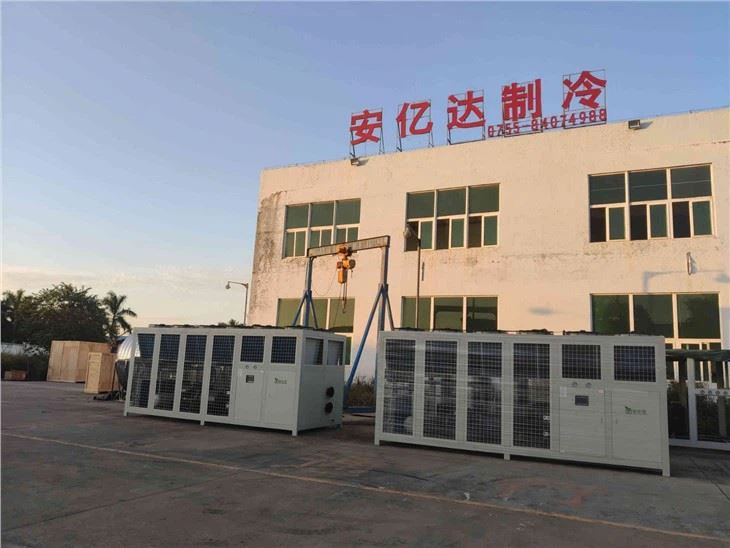

Anyda Can Fulfil Your Process Cooling Needs
Anyda Chillers is an industrial chiller manufacturer offering a full range of water chillers that can be custom-built to various industrial applications.
To learn more about how we can assist with your process cooling needs, please contact us today!
