60TR 90HP R410A Air Cooled Chiller Unit
Adopt 6 pcs of Danfoss Compressors, with tank and pump inside, 6pcs of big power fan motor.
Detailed Specs:
|
Item |
Specification / Supplier |
||
|
Cooling capacity |
Model |
AYD-90A |
|
|
tr/h |
60 |
||
|
Power input |
kw |
5 |
|
|
Temp Outlet (℃) |
5-25adjustable |
||
|
Power Supply |
380V-3N-50HZ |
||
|
refrigerant control |
Expansion valve |
||
|
refrigerant |
R410A |
||
|
Dimension(mm)L*W*H |
3000*2000*2200 |
||
|
Compressor |
style |
Hermetic scroll |
|
|
quantity（set） |
6 |
||
|
Power(kw) |
67.8 |
||
|
Condenser |
Style |
Fin Type |
|
|
Fan Qty(pcs) |
6 |
||
|
Fan Power(kw) |
9 |
||
|
Air Volume（m3/h） |
90000 |
||
|
Evaporator |
Style |
Shell and tubes |
|
|
Cold water flow（m3/h） |
40 |
||
|
Pipe size（DN） |
80 |
||
|
Tank size(L) |
800 |
||
|
Water Pump(kw) |
5.5 |
||
|
Protector Device |
1.Phase protector 2.Fan overload protector 3.High/low voltage protector 4.Coil overheat protector 5.Anti-freeze protector |
||
|
Unit Weight(kg） |
1850 |
||
|
Main Parts |
|||
|
Compressor |
Danfoss |
||
|
Electronic |
LS / Carlo |
||
|
Expansion Valve |
Emerson |
||
|
Electrical control |
Siemens |
||
Remarks:The cooling capacity is calculated based on 2C evaporating temp, 45C condensing temp.
60TR 90HP Air Cooled Chiller With R410A Compressor Details:

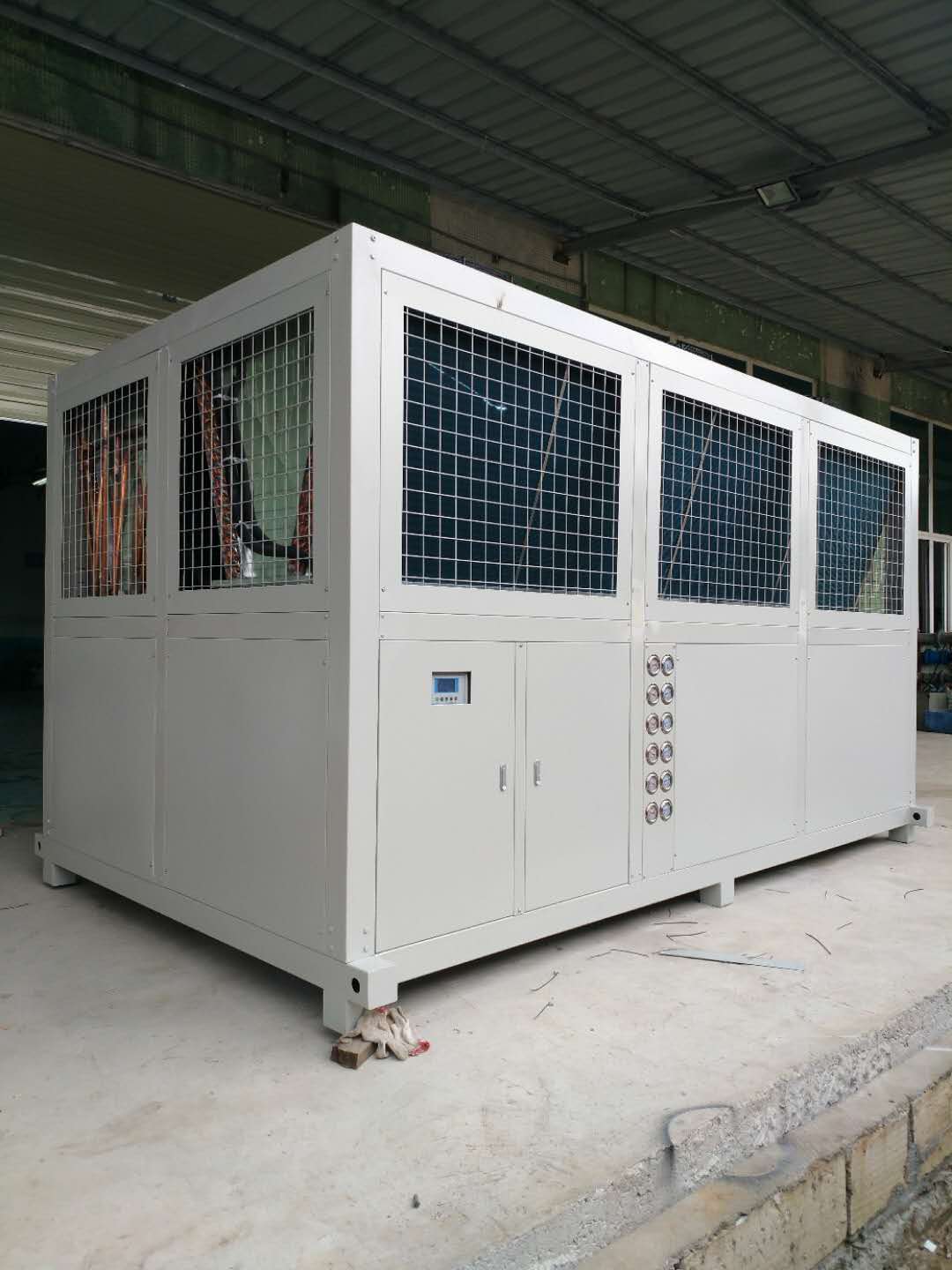

60TR 90HP Air Cooled Chiller With R410A Detailed Image:
RFQ:
1. What is production period ?
Generally speaking, it is 15-30 days,some standard model there are some stocks, but it all depend on the model ,quantity.
2.What is your company after-sales service ?
Our warranty period is one year. If there is any problem in this year, we will send you the new parts (not including freight )for replacement. Meanwhile, welcome to consulting the technical knowledge.
3.Chiller maintenance?
Step 1: Keep Tubes Clean
Step 2: Ensure a Leak-free Unit
Step 3: Sustain Proper Water Treatment(prevent scale, corrosion)
Step 4: Analyze Oil and Refrigerant
