60T Counter Flow Cooling Tower Disriptions:
1. Frame adopt the national standard Tang Gang, high hardness, thick material, load-bearing capacity, surface hot galvanized treatment。
2. Body casing material, surface layer of plastic used imported wax layer + 33 # gel coat layer, hard and durable, glass steel layer with 889 # resin + boulder fiber, toughness, high hardness, acid
3. Exhaust system using high-quality copper core motor and aluminum alloy blade, wear-resistant, high temperature
4. oblique pattern design PVC film to reduce the flow rate, increase the heat transfer area, greatly improve the cooling effect
5. Other: stainless steel float copper valve, nylon cable knot, high temperature corrosion resistance
60T Counter Flow Cooling Tower Spec:
|
Item |
Content |
Value |
Remarks |
|
Basic specs |
Cooling Tower Type |
Counter flow round type tower |
|
|
Model |
AYD-60T |
||
|
Circulating Water Flow |
46.8 m3/h |
||
|
Inlet Temp／Outlet Temp |
37℃／32℃ |
||
|
DB／WB |
31.5℃／28℃ |
||
|
Cooling Capacity |
234,000 kcal/h |
||
|
Noise Value |
62.5dB(A) |
||
|
Power Supply |
380V／3P／50Hz |
||
|
Water Requirement |
PH＝6-8 |
||
|
Design specs |
Air Water Scale |
0.62kg/kg |
|
|
Flying Water Loss |
≤0.02% |
||
|
Evaporation Loss |
0.83% |
||
|
Net／Running Weight |
375/960KG |
||
|
Motor fan specs |
Fan Type |
Axial-Flow |
|
|
Air Volume |
25,740m3/h |
||
|
RPM |
460r/min |
||
|
Fan Dia（Φ） |
1,170 mm |
||
|
Quantity of Fan |
1set |
4pcs/set |
|
|
Driving Mode |
Directly |
||
|
Motor Power |
1.5 kW |
||
|
Start Way |
Directly |
||
|
Main |
Inlet Pipe Size（DN） |
100mm |
|
|
Dimension |
Outlet Pipe Size（DN） |
100mm |
|
|
Overflow／Drain Pipe（DN） |
25mm／25mm |
||
|
auto／manual supply（DN） |
20mm |
||
|
Material |
Rotor |
Nylon |
|
|
Sprinkler System |
P.V.C |
||
|
Boarding |
FRP |
||
|
Basin |
FRP |
||
|
Fan |
A.B.S |
||
|
Air Inlet |
P.V.C |
||
|
Film |
P.V.C |

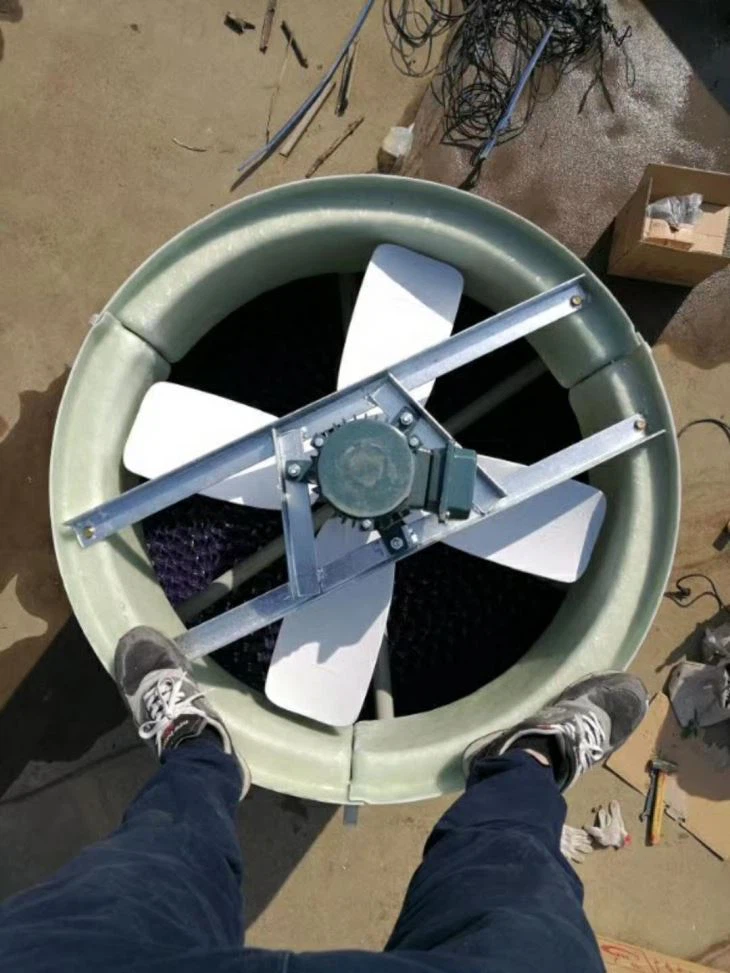

60T Counter Flow Cooling Tower Details:
