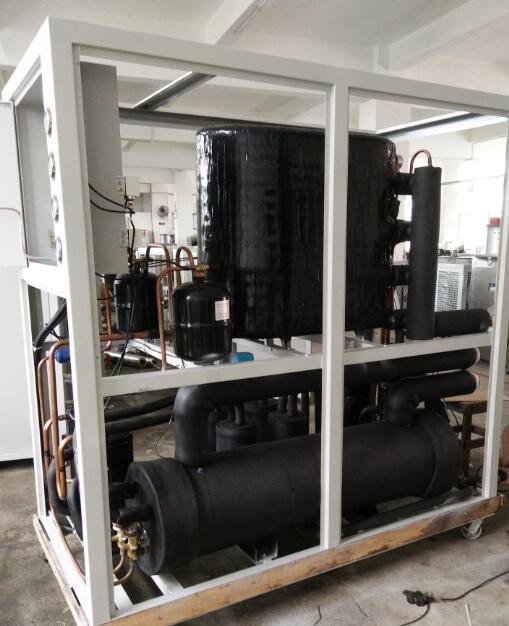

High Temperature 70-75C Outlet 80 kw Heating Capacity Water Source Heat Pump
Anyda water source heat pump adopt scroll compressor and the unit is capable of producing hot water with a max 80C,which is an ideal for both commercial and industrial application which is not only eco-friendly but reliable and stable especially for the system producing high temp hot water.
|
Item |
Specification / Supplier |
||
|
Cooling capacity |
Model |
AYD-40WT |
|
|
kw/h |
44 |
||
|
Heating capacity |
kw/h |
84 |
|
|
Hot Water Volume |
m3/h |
14.5 |
|
|
Hot Water Temp |
℃ |
70-75 |
|
|
Max Current |
A |
64 |
|
|
Power Supply |
380V-3N-50HZ |
||
|
Cold Water Temp Outlet (℃) |
7 |
||
|
refrigerant control |
Expansion valve |
||
|
Refrigeration circle |
2 |
||
|
refrigerant |
R134A |
||
|
Dimension（mm）L*W*H |
2080*830*1500 |
||
|
Compressor |
style |
hermetic Scroll |
|
|
Quantity(pcs) |
4 |
||
|
Compressor power(kw/pcs) |
10 |
||
|
Condenser |
Style |
Shell and Tubes |
|
|
Chilled water flow（m3/h） |
27 |
||
|
Pipe size(“) |
3 |
||
|
Evaporator |
Style |
Shell and Tube / 1set |
|
|
Cold water flow（m3/h） |
22 |
||
|
Pipe size（”） |
3 |
||
|
Protector Device |
1、Phase protector 2、Fan overload protector 3、High/low voltage protector 4、Coil overheat protector 5、Anti-freeze protector |
||
|
Unit Weight（kg） |
2400 |
||
|
Main Parts Brand |
|||
|
Compressor |
Invotech |
||
|
Electronic |
LS |
||
|
Electromagnetically valve |
Emerson |
||
|
Expansion Valve |
Emerson |
||
|
Electrical Control |
Punp |
||
