Condensing Unit with Heat Recovery for butter cold room
Cutomer Requirement:
The cold room is 10*8*3m, for fresh produced product(product temperature 2C and 1000kg/hr,room temp required -24C,need 50%capacity more for backup.Also need partial heat recovery and as much as possible.
Model Choose:
We adopt two units of 30HP bitzer compressor condensing unit with heat recovery,specs below:
|
Item |
Specification / Supplier |
||
|
Model |
AYD-30AL |
||
|
Cooling capacity |
kw/h |
18.92 |
|
|
Heat Recovery |
kw/h |
8.5 |
|
|
Power input |
kw |
21 |
|
|
Current |
A |
37 |
|
|
Power Supply |
380V-3N-50HZ |
||
|
refrigerant control |
Expansion valve |
||
|
Refrigeration circle |
one |
||
|
refrigerant |
R404A |
||
|
Dimension(mm)L×W×H |
2500*910*1765 |
||
|
Compressor |
Style |
Hermetic Piston type |
|
|
Quantity(set) |
1 |
||
|
Model |
6GE-34Y |
||
|
Compressor Power(kw/pcs) |
16.35 |
||
|
Condenser |
Style |
Fin |
|
|
Air Volume(m3/h) |
32400 |
||
|
Fan Power(kw) |
2.64 |
||
|
Protector Device |
1.Phase protector 2.Fan overload protector 3.High/low voltage protector 4.overheat protector 5.Anti-freeze protector |
||
|
Unit Weight(kg) |
1150 |
||
|
Main Parts |
|||
|
Compressor |
Bitzer |
||
|
Electronic |
LG / Schneidar |
||
|
Expansion Valve |
Emerson |
||
Remarks: the cooling capacity is based on -35c evaporator temp, 50C condensing temp.
30HP bitzer compressor condensing unit with heat recovery drawing confirmed by customer.

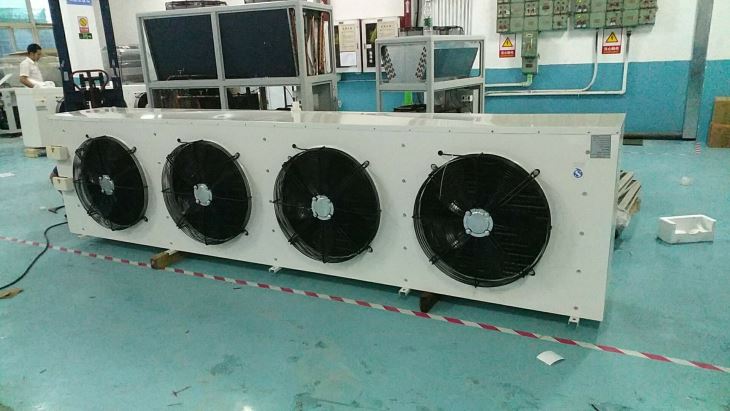

30HP bitzer compressor condensing unit with heat recovery last pictures:
