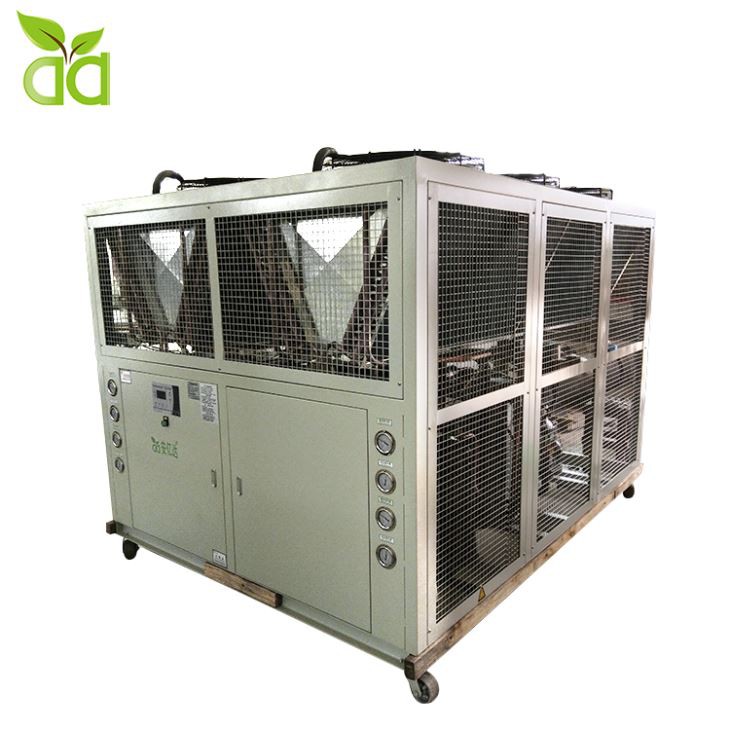

120 Kw 50 Hp Air Cooled Water Chiller
Features:
1.Adopt 4 pieces of scroll compressors,brand can be Panasonic,Copeland or Danfoss.
2.High efficiency Shell and Tubes evaporator
3.With tank and pump inside
4.Complete protection like water shortage protection, high/low voltage protection, anti-freezing protection, overload protection, overheat protection and oil level protection ensure high reliability and stability.
120 kw 50 hp Air Cooled Water Chiller Specifications
Item | Specification / Supplier | ||
Cooling capacity | Model | AYD-50A | |
kw/h | 130 | ||
Power input | kw | 41 | |
Power supply | 380V-3N-50HZ | ||
Temp Outlet (℃) | 7 | ||
refrigerant control | Expansion valve | ||
Refrigeration circle | four | ||
refrigerant | R22 | ||
Dimension（mm）L×W×H | 2200*2000*1900 | ||
Compressor | Style | Scroll | |
Quantity（set） | 4 | ||
Compressor Power(kw) | 9.37 | ||
Condenser | Style | Fin type | |
Quantity（set） | 4 | ||
Power(kw) | 3.4 | ||
Air Volume（m3/h） | 52000 | ||
Evaporator | Style | Shell and Tube / 1set | |
Cold water flow（m3/h） | 22 | ||
Pipe size（DN） | 80 | ||
Water Tank(L) | 610 | ||
Pump Power(kw/h) | 3.75 | ||
Protector Device | 1、Phase protector 2、Fan overload protector 3、High/low voltage protector 4、overheat protector 5、Anti-freeze protector | ||
Unit Weight（kg） | 1500 | ||
Operating Weight（kg） | 1800 | ||
Main Parts | |||
Compressor | Panasonic/Copeland/Danfoss | ||
Electronic | LS / Carlo | ||
Electromagnetically valve | Emerson | ||
Expansion Valve | Emerson | ||
Electrical control | Punp | ||
FAQ:
1.Heat load calculation for chiller?
Cooling Capacity(kw)= Flow Rate(m3/h)*Temp Change(T1-t2)/0.86
Heat Load= C(specific heat)* M(quality output per hour )*Temp Change(T1-T2)
2.Types of chiller system?
It depend on the local environment temperature and water source. If lack of water and low ambient temp , we advise you use the air cooled chiller, if not , air cooled chiller is ok. But for installation,air cooled is more convenient than water cooled.
3. How to select the model of the chiller ?
It is better to tell us some parameter, such as : Cooling Capacity, Outlet Temperature, Power Supply,Environment Temperature, Application Field, Anti-rust Or Anti-corrosion, and so on.Meanwhile,we could do customized chiller according to your end user consumption.
4. What is delivery time ?
Generally speaking, it is 15-30 days,some standard model there are some stocks, but it all depend on the model ,quantity.
5. What is your company after-sales service ?
Our warranty period is one year. If there is any problem in this year, we will send you the new parts (not including freight )for replacement. Meanwhile, welcome to consulting the technical knowledge.
