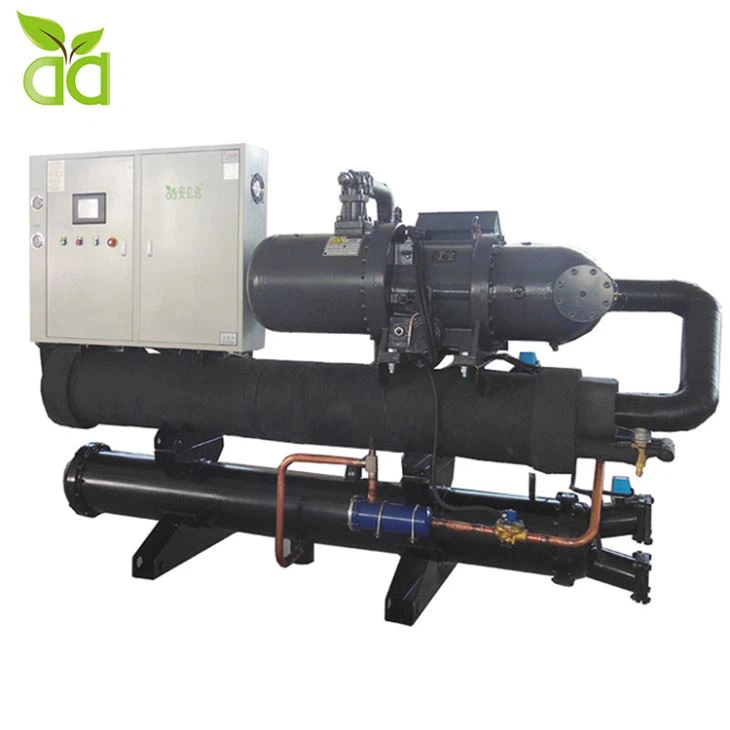

Best Price 70HP 50Ton 200 Kw Industrial Water Cooled Screw Chiller
1. Adopt the best (semi-hermetic) screw compressor from abroad, and operate credibility, high efficiency, easy to maintain, exact volume control, a wide range of application. The system adopts the latest asymmetric rotor profile. Build-in pressure drop lubricant to system with low vibrations, sound emissions，high sealing performance.
2. The human machine interface configures a full touch screen, which enables automatic control and accurate monitoring. the advantages of unit: waterproof，dust-proof, corrosion resistant, long life. Step or steppless capacity control, the unit ensure that it bring into the most energy-saving effective in any load conditions.
3. Due to use heat copper tube and high efficiency compressor with high effective thermal expansion current-saving device, the unit will operate in stability, longer and effectively.
4. Chiller unit adopts a reliable safety protection device: to prevent compressor starting frequently, over-current protection, overheat of motor protection, prevent freezing, sight glass in liquid, oil heating protection, phase protection, HV/LV protection, discharge high-temperature protection, safety value, soluble clock, water shut-off protection, and so on.
5. A full intelligent control system and non-stop running within 24 hours.
|
Item |
Specification / Supplier |
||
|
Cooling capacity |
Model |
AYD-200WS |
|
|
kw/h |
200 |
||
|
Power input |
kw |
49.5 |
|
|
Max Current |
A |
87 |
|
|
Power Supply |
380V-3N-50HZ |
||
|
Temp Outlet (℃) |
7 |
||
|
refrigerant control |
Expansion valve |
||
|
Refrigeration circle |
one |
||
|
refrigerant |
R407C |
||
|
Dimension（mm）L*W*H |
2100*900*1500 |
||
|
Compressor |
style |
Semi-hermetic Screw |
|
|
Compressor power(kw) |
49.5 |
||
|
Condenser |
Style |
Shell and Tubes |
|
|
Chilled water flow（m3/h） |
46 |
||
|
Pipe size(“) |
3 |
||
|
Evaporator |
Style |
Shell and Tube / 1set |
|
|
Cold water flow（m3/h） |
34 |
||
|
Pipe size（”） |
3 |
||
|
Protector Device |
1.Phase protector 2.Fan overload protector 3.High/low voltage protector 4.Coil overheat protector 5.Anti-freeze protector |
||
|
Unit Weight（kg） |
1400 |
||
|
Main Parts Brand |
|||
|
Compressor |
Hanbell |
||
|
Electronic |
LG / Carlo |
||
|
Electromagnetically valve |
Emerson |
||
|
Expansion Valve |
Emerson |
||
|
PLC |
Siemens |
||
Remarks: The cooling capacity is calculated based on evaporator temp 2C,condensing temp 40C.
FAQ:
1.How to calculate cooling capacity for chillers
Cooling Capacity(kw)= Flow Rate(m3/h)*Temp Change(T1-t2)/0.86
Heat Load= C(specific heat)* M(quality output per hour )*Temp Change(T1-T2)
2.Cooling capacity unit conversion?
1 kcal／h ＝ 1.163W,1 W ＝ 0.8598 kcal／h；
1 Btu／h ＝ 0.2931W,1 W ＝ 3.412 Btu／h；
1 USRT ＝ 3.517 kW,1 kW ＝ 0.28434 USRT；
1 kcal／h ＝ 3.968 Btu／h,1 Btu／h ＝ 0.252 kcal／h；
1 USRT ＝ 3024 kcal／h,10000 kcal／h ＝ 3.3069 USRT；
3.This chiller could heat?
Yes,if heat recovery,only 30%. If fully heating,that is heat pump.
